1.
System modes: continuous, single pulse, repeat
pulse, super pulse. Output power is adjustable from
0.5W~15W continuously. The treatment is used to cure
surface disease of face while causing less damage. It
holds good for beauty culture.
2.
Aiming beam: Red pilot beam of 2mW diode laser. The unit
can clear up the focus of a disease exactly while
causing less damage to tissue around.
3.
The unit is a new type of intelligent laser medical
devices which is controlled by microprocessor program,
applying light-touching thin-film switch and the
function of power alternation. The unit is especially
added power feedback system which makes power output of
laser beam accurate.
4.

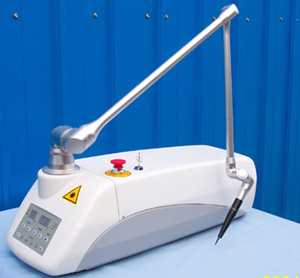

Laser beam delivery system is composed of light 7-joint
spring-balanced articulated arm, which can be operated
conveniently.
5.
Output power and irradiating time can be read directly
from digital faceplate which provides correct data for
doctor's clinical material.
6.
The handpiece has many types which can be used in
different clinical treatment such as cutting, burning,
vaporizing, solidifying. Among these handpieces, there
is a lank one applied in otolaryngology. It can reach
deep into nasal cavity and guttural inner to resect or
vaporize the focus of a disease.
It can be used in patient room, beauty house and private
clinic for its dexterous volume, light weight,
convenience carry.
Features:
|
|
Sealed-off
laser technology
|
|
7-joint
spring-balanced
|
|
|
CW.
pulse & super pulse
|
|
articulated
arm
|
|
|
operation
modes
|
|
Pilot
beam of 2mW
|
|
|
Touching
switch, micro-processor
|
|
diode
laser
|
|
|
controlled,
alpahnumeric message
|
|
Safety
protecting with
|
|
|
display
|
|
alarming automatically
|
Technical
Specifications
|
Model
|
ML015-CA
|
|
Laser
type
|
Sealed
off, DC-excited C02
laser
|
|
Wavelength
|
10.6¦Ìm
|
|
Mode
|
TEM00
|
|
Power
to tissue
|
15W
|
|
Laser
operation modes
|
CW,
Pulse, Super pulse
|
|
Tissue
exposure modes
|
Continuous,
Single pulse, Repeat pulse
|
|
Super
pulse peak power
|
100W
|
|
Aiming
beam
|
2mW
pilot beam (650nm)
|
|
Delivery
system
|
7-joint
spring-balanced articulated arm
|
|
Working
radius
|
110cm
|
|
Cooling
system
|
Closed
loop liquid
|
|
Control
|
Microprocessor
controlled
|
|
Warranty
|
2
years
|
|
Electrical
input
|
AC
220V/50Hz or AC110V/60Hz
|
|
Dimension
(mm)
|
360*610*120
|
|
Weight
(kg)
|
18
|
Applications:
|
General
Surgery:
|
haemangioma,
adipoma, steatoma, rectal cancer
|
|
Oral
Surgery:
|
epulis, buccal
haemangioma, mucous cyst, lichen planus
|
|
Otolaryngology:
|
aurical
vegetation, nosal tumour and tumour of paranasal
simus, benign tumour of oropharynx, gular
haemangioma, vocal polyp, laryngocarcinoma,
chronic pharyagitis, chronic rhinitis, chronic
laryngitis
|
|
Urology:
|
meatus
urinarious condyloma, redundant prepuce,
caruncle of urethra, polyp of penis
|
|
Gynecology:
|
myoma of
uterus, cervical erosion, cervical polyp, vagina
condyloma
|
|
Dermatology:
|
wart, common
wart, venereal wart, herpes labialis, herpes
zoster, nevus pigmentosa, cutaneous malignant
tumour
|
|
Cosmetology:
|
dispel wrinkle
tache, stains of face, nevus, vegetation and
underarm oduour
|
¡¡ |
